| Place of Origin: | China |
| Brand Name: | QH |
| Certification: | CE ROHs LC |
| Model Number: | lifepo4 |
| Core size: | D36*W130*H200MM |
|---|---|
| Cell Weight: | 2.8kg |
| Life Cycle: | >6000times |
| Casing material for single cell: | Aluminum shell |
| Capacity: | 90Ah |
| Max Discharging Rate: | Continuous Discharging:2C ; Max Peak Discharging:3C |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton packing |

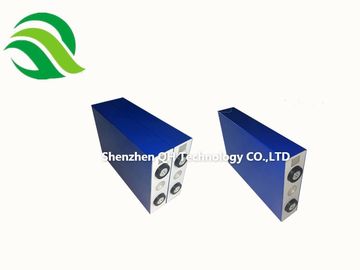

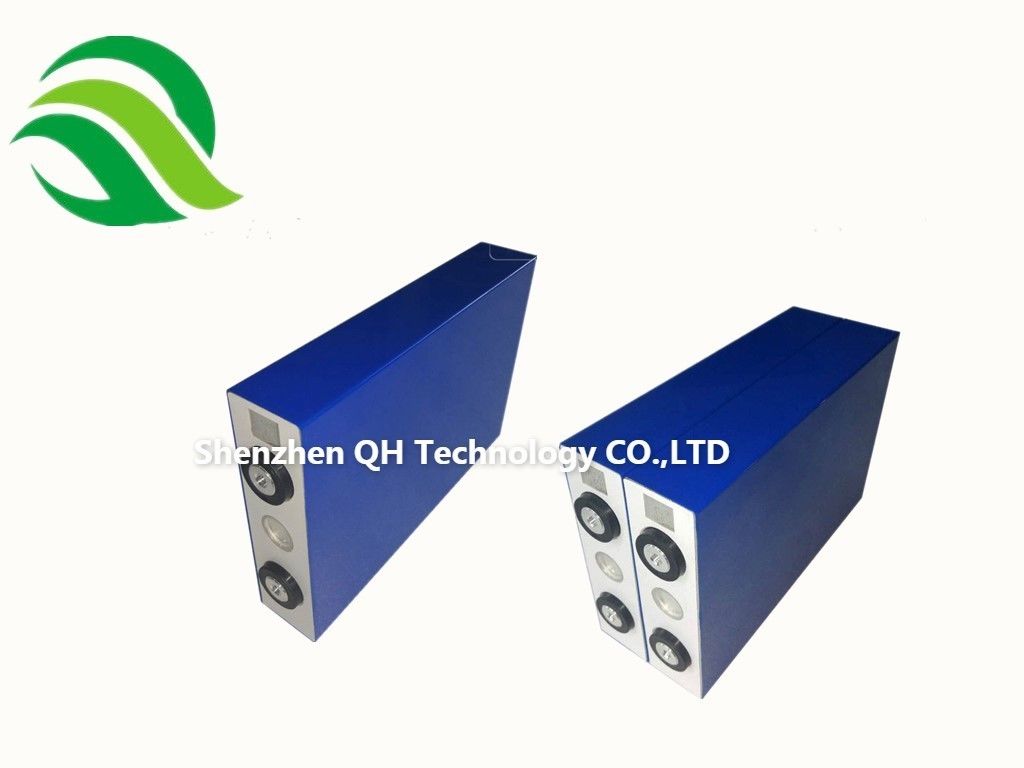

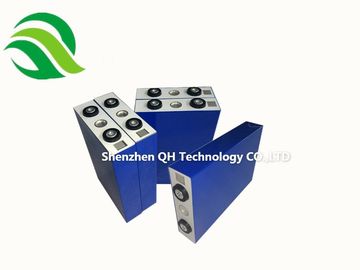

Good Performance Prismatic Battery 3.2 V 90Ah Power Tool Lithium Iron Phosphate
|
Nominal Voltage |
3.2V |
|
Capacity |
90Ah |
|
Charging Current |
Standard Charging:0.2C |
|
Internal Resistance |
≤ 0.6mΩ (At 0.2C rate, 2.0V cut-off) |
|
Working Temperature |
Charging: -10℃~45℃ |
|
Storage Temperature |
≤1month: -10–45℃ |
|
Life Cycle |
>6000times |
Applications
1. Home appliance: electric toothbrush, electric cleaner, electric sweeper, electric blanket, TV remote control, electric toys and so on.
2. LED light and flashlight: lantern, headlamp, emergency light, high-end lamp, solar flashlight, searchlight, bicycle light, military flashlight, miner’s lamp, camping light, self-defense flashlight, etc.
3. Electric vehicles: e-bike, scooter, e-motor, golf trolley, forklift, electric wheelchairs, electric bicycle, sightseeing car and so on.
4. Consumer applications: Bluetooth earphone, MPS, tablet PC, portable DVD player, laptop, power bank, speaker, microphone, digital camera etc.
5. Other applications: UPS, GPS, backup power supply, solar lawn, small medical equipment and portable instruments.
Why Choose Us?
1. OEM and ODM services are welcome.
2. Certification: ISO9001:2008 certification, most products are attached with CE, ROHS, UN38.3, SGS certification.
3. The safety performance of the finished battery can reach UL, CE, KPS, KC and other testing standards.
4. 5 years warranty. From the date of shipment, we promise to use the defects proved in the production process in case of battery failure, but not for the misuse or abuse of customers.
5. We provide on-site service through DHL, FEDEX, UPE, EMS, and small orders.
6. Good quality and price- performance ratio.
7. We are dedicated to providing our customers with the most attentive service.
8. QH has more than 10 years of military technology and manufacturing experience.
FAQ
1. Before assembling the battery pack, can you explain in detail how you matched the batteries of the battery pack?
A: We will select capacity, measure the voltage and the inner resistance, same capacities cell, same voltage cell or same IR cells respectively for one pack. Besides, the voltage difference is less than 0.02V per cell and IR difference is under 1m ohms.
2. What are your strengths compared to other suppliers?
A: (1) High quality and cost- performance ratio. Our batteries are good capacity, good consistency and high security. We guarantee that all goods are 100% inspection before shipment by our quality control system including IQC (incoming quality control), PQC (processing quality control), QAC (quality assurance control), and FQC (Final quality control), etc.
(2) Superior services. Good and whole-hearted in - sale, pre - sale and after - sale services. Every of us treat our customers as friends. We make every effort to supply best solution for our customers.
3. What company will be used to make goods? DHL? UPS or other?
A: We use TNT, DHL, UPS and FedEx to deliver our batteries.
