| Place of Origin: | Guangzhou China |
| Brand Name: | QH |
| Certification: | KC/MSDS/UN38.3/ROHS/UL |
| Model Number: | QH-LFP48174166-120AH |
| Weight: | 2.8kg |
|---|---|
| Warranty: | 3 Years |
| Type: | Lifepo4 |
| Nominal volt: | 3.2V |
| Nominal cap: | 120Ah |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | carton packing |

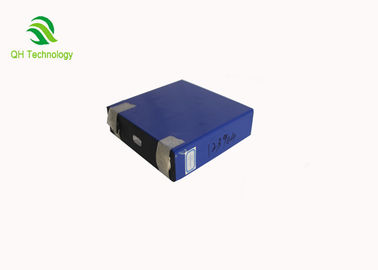

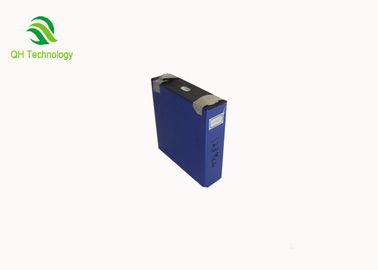

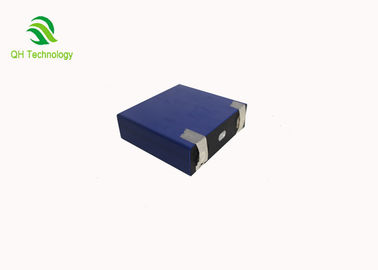

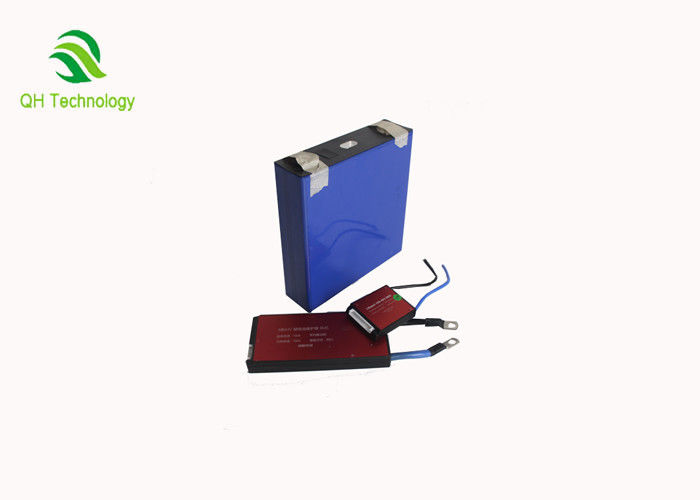

3.2V 120AH CLi-ion Lithium Battery Lifepo4 12v 100ah Battery Ion Lithium
Product details
| Model | QH-LFP48173166-120AH |
| Casing material for single cell | Aluminum shell |
| Nominal Voltage | 3.2V |
| Capacity | 120AH |
| Dimension | D48*W173*H166 MM |
| Cell Weight | 2.85 KG |
| Internal Resistance | ≤ 0.8mΩ |
| Charging Current | 24A (Standard Charging) |
| Max Charge Current | 120A |
| Const. Discharge Current | 120A |
| Max Discharge Current | 240A |
| Cut-off Voltage | Charging: 3.65V |
| Discharging: 2.5V | |
| Working Temperature | Charging: 0℃- 45℃ |
| Discharging: -20℃- 60℃ | |
| Storage Temperature | ≤1month: -20 – 45℃ |
| ≤6month: -20 – 35℃ | |
| During transportation: 20℃ | |
| DOD | 80% |
| Life Cycle | 5000 times |
| Safety Protection | Over Charging Over Discharging Short Circuit Penetration Thermal shock No Fire/Explosion |
1. The oldest lithium battery factory in China.
2. More than 15 years of manufacturing and military technology experience.
3. Factory area: 10,000 square meters.
4. Certification: ISO9001:2008 certification, most products are attached with SGS, UN38.3, CE, ROHS certification.
5. The first-class service level and best quality with competitive prices. We’re dedicated to providing our customers with the most thoughtful and attentive service.
6. Exporting countries: Russia, Western Europe, Southeast Asia, North America, Africa, etc.
7.The output battery reaches the highest standard with a two-year warranty.
From the date of shipment, QH promised to use the defects proved in the case of battery failure in the production process, not the abuse and misuse of customers.
8. Accept small orders to help you open up their market.
9. Provide on-site service through FEDEX, DHL, EMS, UPE and small orders.
FCL or air or sea freight; port / airport reception.
Assist clients in using cargo transportation or freight forwarders methods.
10. ODM and OEM services are welcome.
Packaging & Shipping
In the shipping process, the life po4 battery short circuit protection is used alone.
All batteries are placed in hard cartoon boxes that are protected and protected from damage during transportation.
Ordinary transportation: suitable for passenger, sea, air,cargo aircraft transport.
For more information please visit the label, which contains the lithium battery, should be handled carefully, and if necessary, special procedures for telephone numbers.
Significant Application:
| Telecommunication base station |
| Power monitoring |
| Portable application |
| signboard |
| squad car |
| Automotive application |
| Solar street lights |
| UPS power supply |
|
Electric forklift Household energy storage |
| Hydrologic monitoring |
